We continually research technological developments for environmental measurement and analysis equipment.

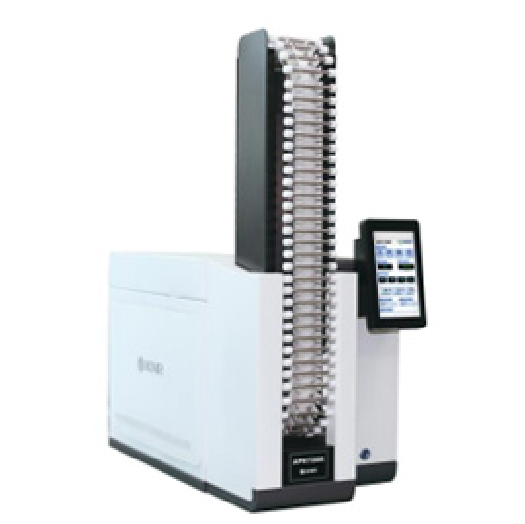

Multi-channel thermal desorption low temperature concentrator
(APK720R, for adsorption pipe)
It is a device that concentrates the sample collected in the adsorption tube at low temperature for thermal desorption and injects it into the analyzer. It is applied to VOC and odor analysis, and up to 72 adsorption tubes can be automatically analyzed through APK720R Automated Desorption Unit.
CatalogSystem features
Compatible with most GCs such as PerkinElmer, Agilent, Shimadzu, etc.
Adsorption tube ¼” O.D x 3.5” L applied
Minimized Cold Point (Provides highly reproducible data)
Up to 72 channels. Automatic continuous analysis
Drying Purging function (moisture removal)
Specification
APK720R
Peltier Type Cooler
Focusing Temp. : -20°C
Focusing Trap : Glass (O.D 6mm, I.D 4mm, L 130mm)Single or
Multi-Bed (2bed, 3bed)
Power : 220VAC, 50/60Hz, 10A
Channel : Max 72 Ch.
Control : APK Control Program
Trap Heating Temp. : 400°C (Max.)
Power : 220VAC, 50/60Hz
Dimension : 350x700x845 (W x D x H)
